Salice Conecta Concealed Hinge – CQAIJE Series (180° Opening)
Included in Pack
2 hinges, cover caps and fixing screws

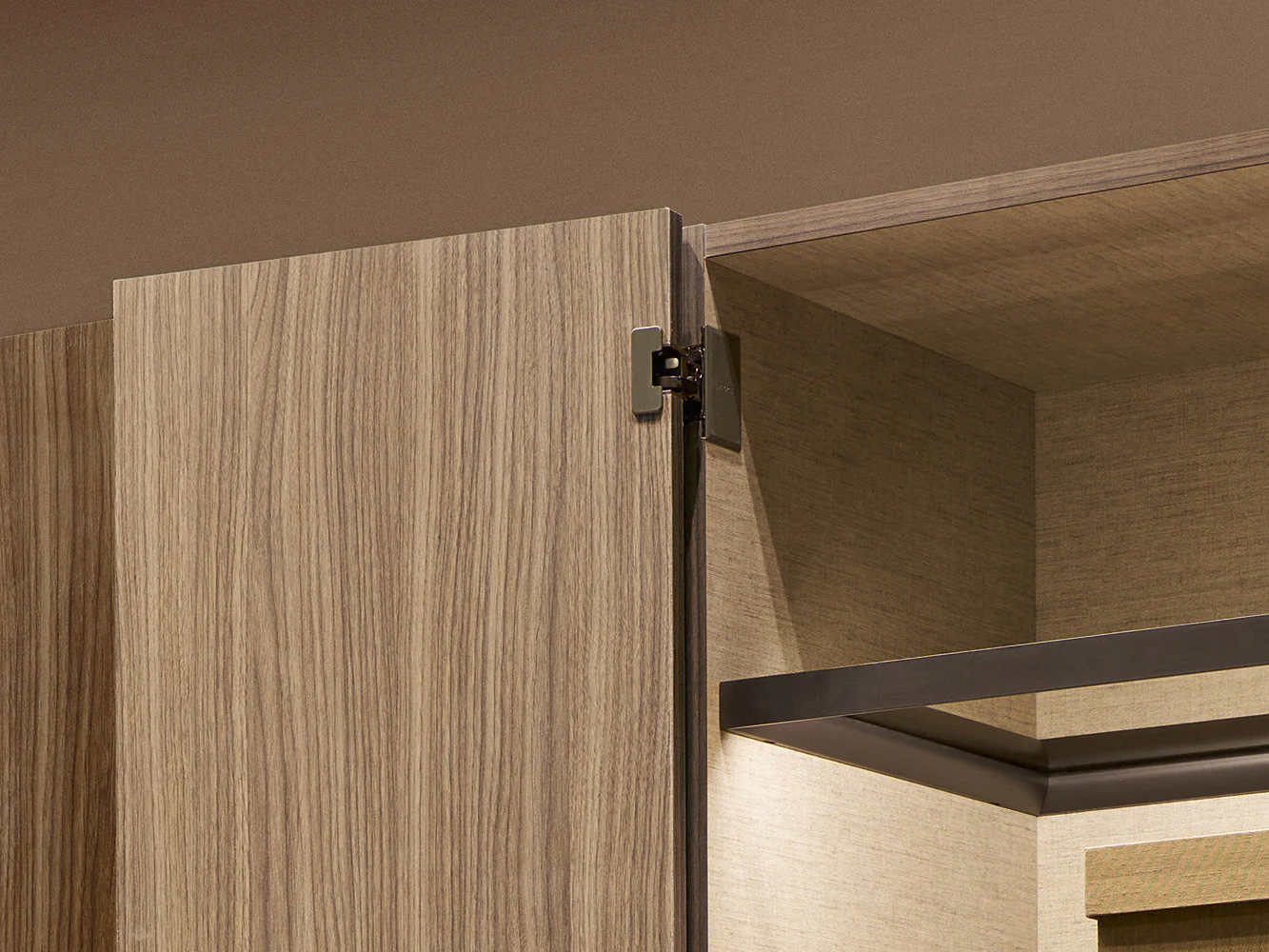

The Salice CONECTA CQAIJE Series is a premium range of 180° concealed hinges designed for wooden and aluminium-framed furniture doors. These hinges are recessed into both the door and side panel, creating a completely invisible look when closed — perfect for modern, minimalist furniture design.
Available in two finishes: Nickel (CQAIJE9BXV) and Titanium (CQAIJE6BXV).
Key Features
- 180° opening angle for full access
- Completely concealed when the door is closed
- Three-way adjustment for perfect alignment:
- Side adjustment: –1 mm to +2 mm
- Height adjustment: –2.5 mm to +2.5 mm
- Depth adjustment: 0 mm to +3 mm
- Depth of hinge cup 19 mm
- Compatible with holders DQG5B (10 mm overlay) or DQG3B (12.5 mm overlay)
Technical Specifications
Opening angle: 180°
Cup depth: 19 mm
Adjustment: Side –1 mm to +2 mm; Height –2.5 mm to +2.5 mm; Depth 0 mm to +3 mm
Overlay: 10 mm (DQG5B) or 12.5 mm (DQG3B)
Finish Options

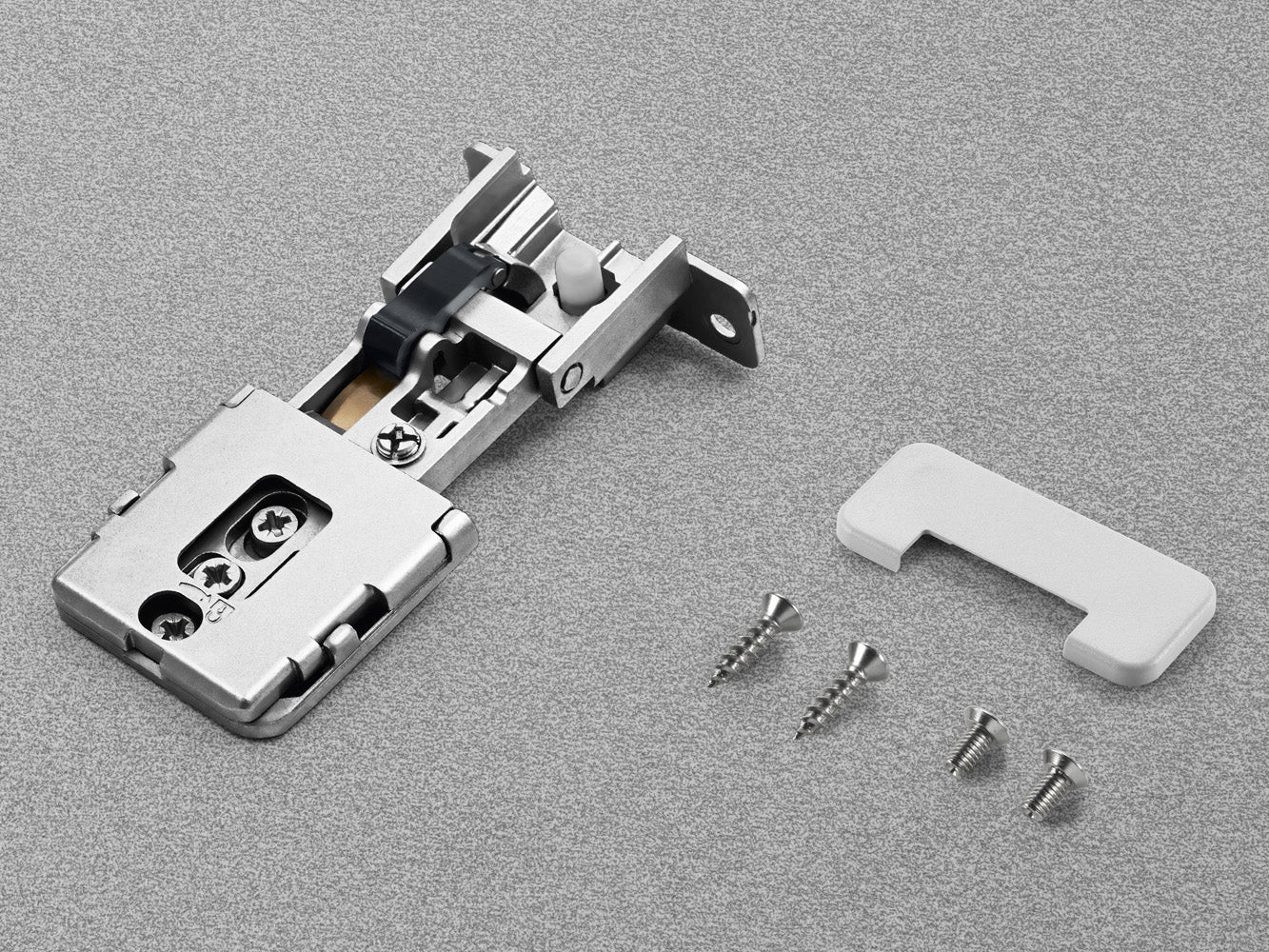

Nickel (CQAIJE9BXV): Bright metallic finish, ideal for classic installations

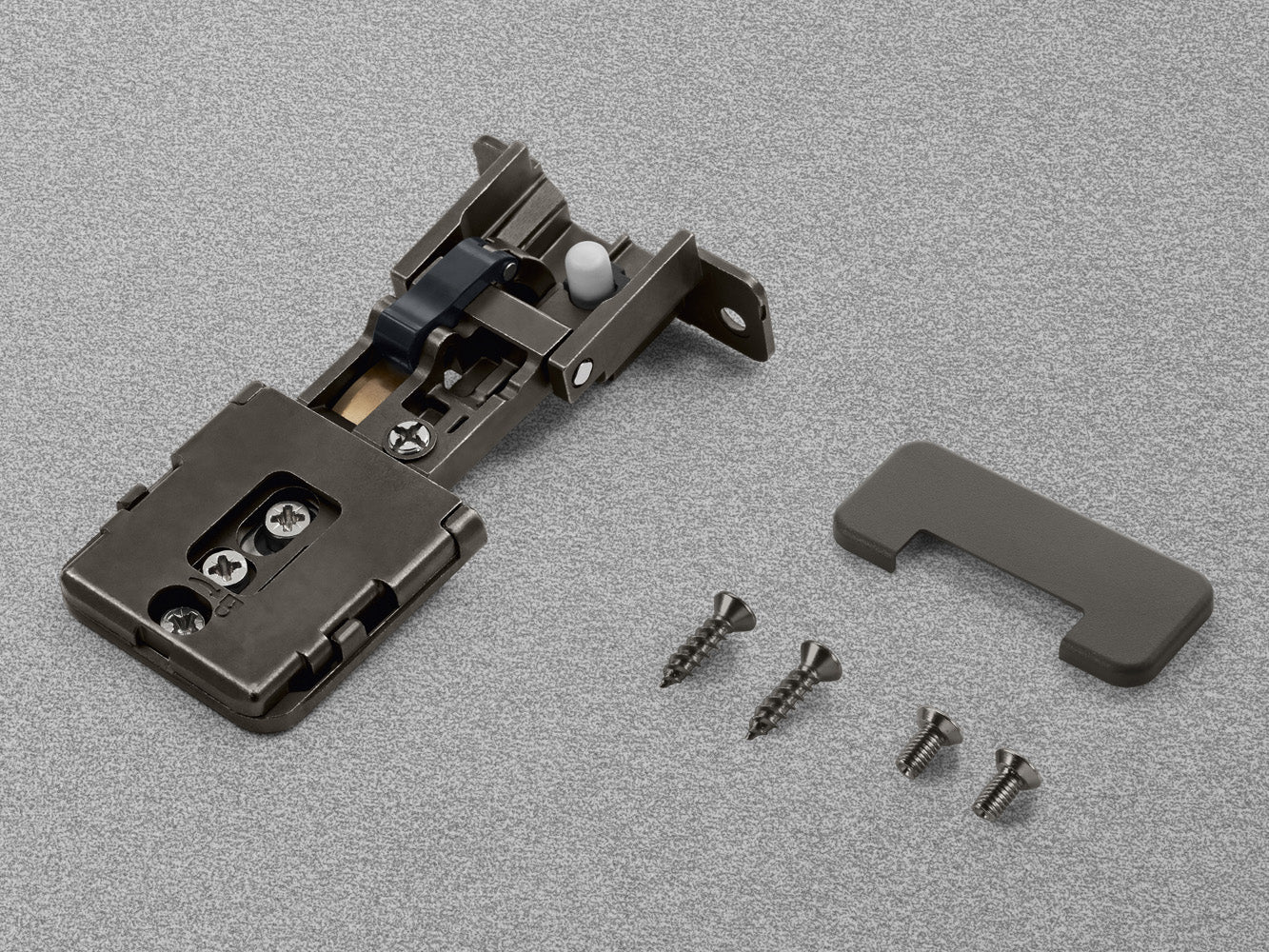

Titanium (CQAIJE6BXV): Dark modern finish, ideal for contemporary furniture
Applications

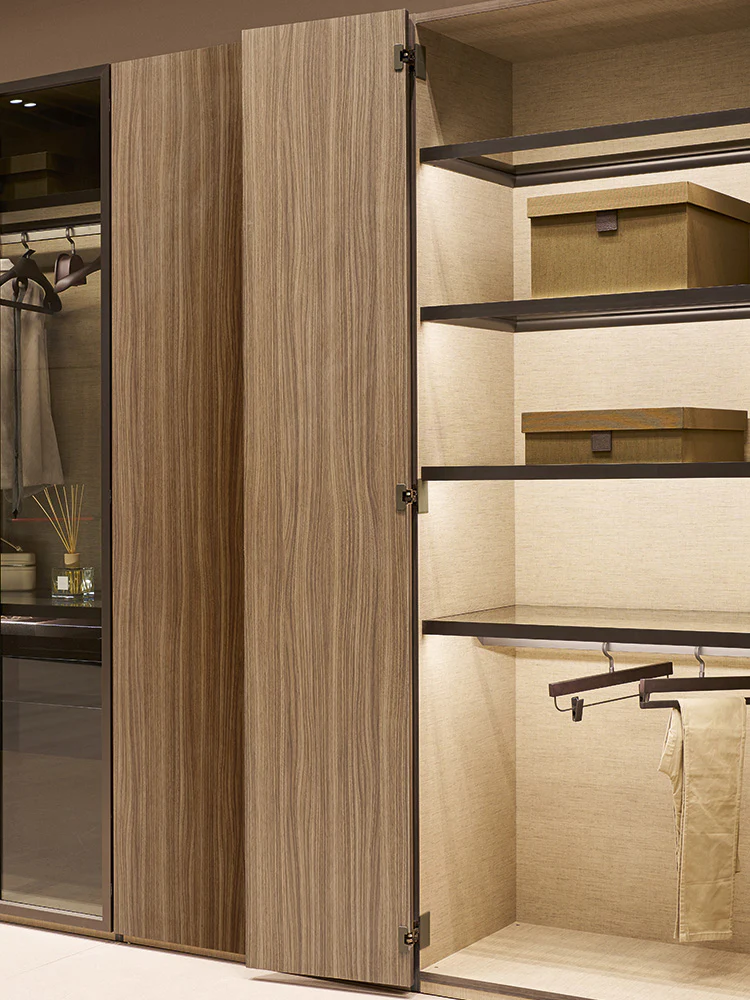

Suitable for kitchens, wardrobes, tall storage, and premium furniture where a clean, minimalist appearance is desired.
