Salice EvoLift Parallel Lift System for Short Doors (360-440mm)
Description
The new Salice EvoLift Parallel mechanism introduces a new dimension to lift systems. Using a coil spring mechanism that replaces the old gas-based system, the new system is more compact and offers high levels of continued performance.
This is system is designed to suit doors between 360mm and 440mm tall. For taller doors please order the system designed to suit taller doors here.

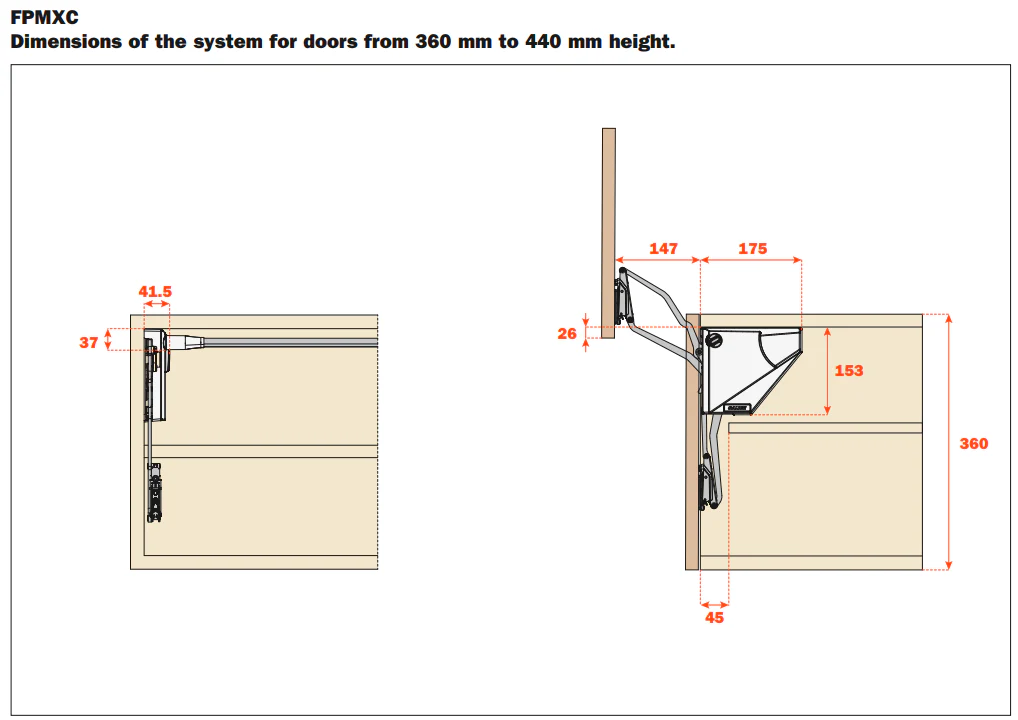

The maximum door protrusion is 188mm + door thickness and handles.
The system is sold as a complete kit including covers and stabiliser bar. Included is:

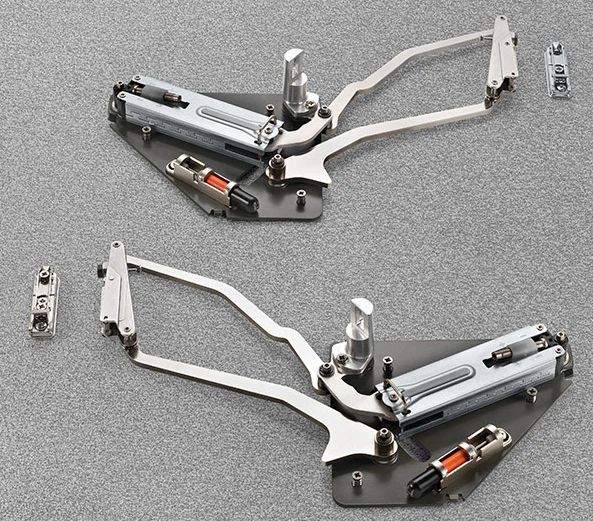

- Pair of arm mechanisms (Left and Right)
- Pair of Mounting plates for door

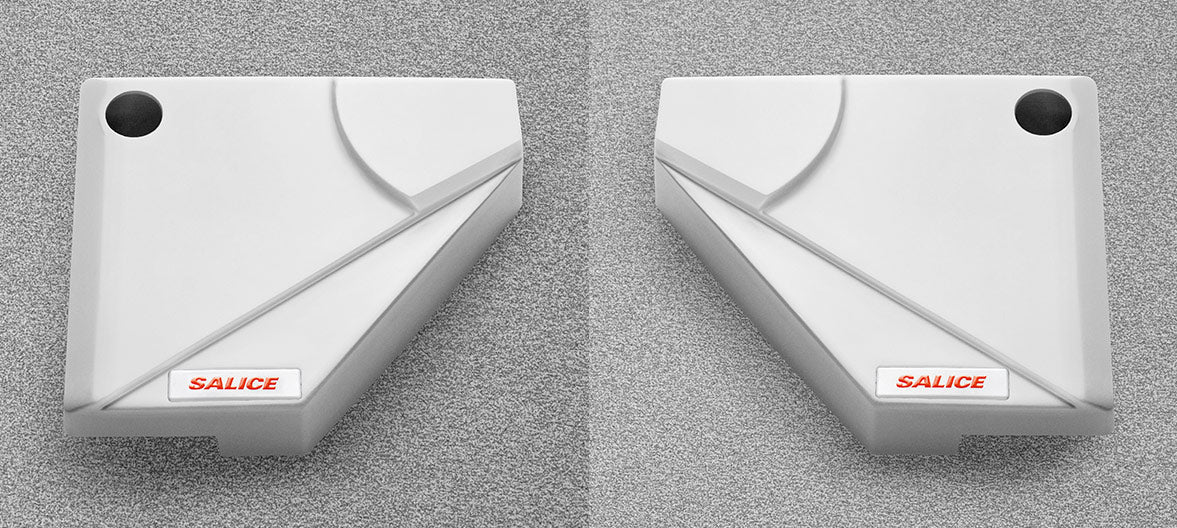

- Pair of Covers (Choose White or Titanium)

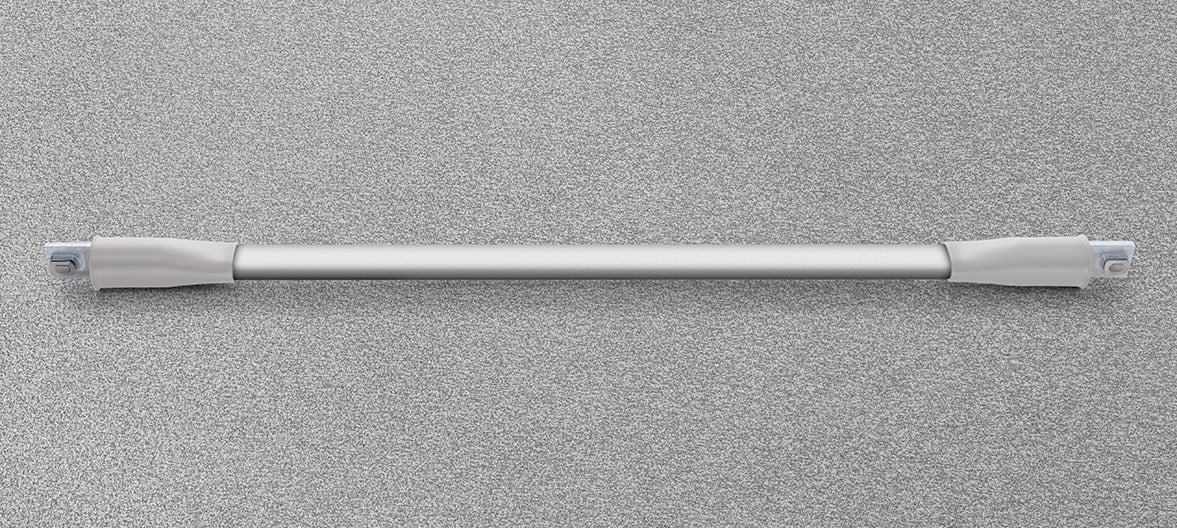

- Stabiliser Bar (Choose correct width for your cabinet)
Please refer to the strength charts in the images or in the downloads tab to work out which strength system you need.
The stabiliser bar is cut down to size on site. Calculation = internal width of the cabinet - 126mm
Downloads
 Original: $139.87
-65%$139.87
$48.95More Images
