Salice 110° Half Overlay Sprung Cabinet Hinge

Description

This is a half overlay 9mm crank hinge. The hinge is sprung closing.

Two finishes available:

• Nickel - C2A6G99
• Titanium - C2A6G66

Tech Details

• Half overlay hinge / 9mm crank
• For doors of medium weight and thickness (16-26mm)
• 35mm diameter cup
• 11mm deep cup
• 110 Degree opening
• Possible drilling distance (K): 3mm - 6mm

Downloads

 Technical Features

Which mount plate?

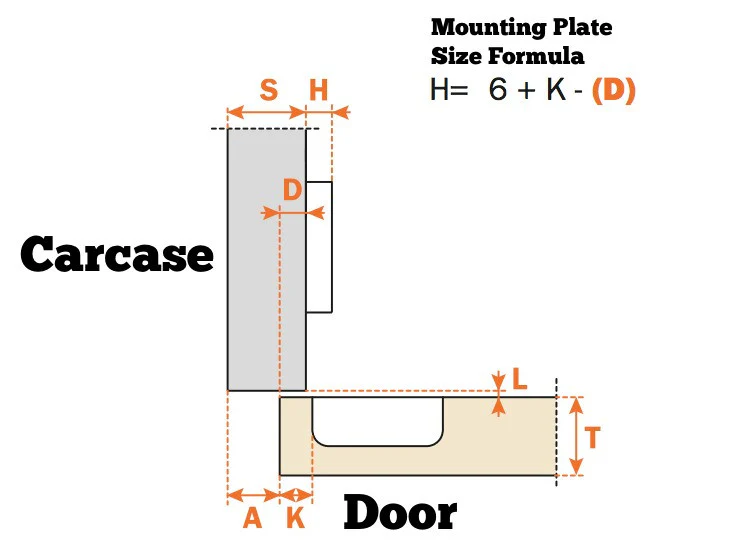

This hinge is compatible with all screw-on and clip-on mount plates. To work out the height of the mounting plate required please consult the image below.

Hinge ID

If you are unsure which hinge you have please forward a few photos of your hinge to [email protected]
