Salice Tilt Up for Flush Recessed Assembly with Cover

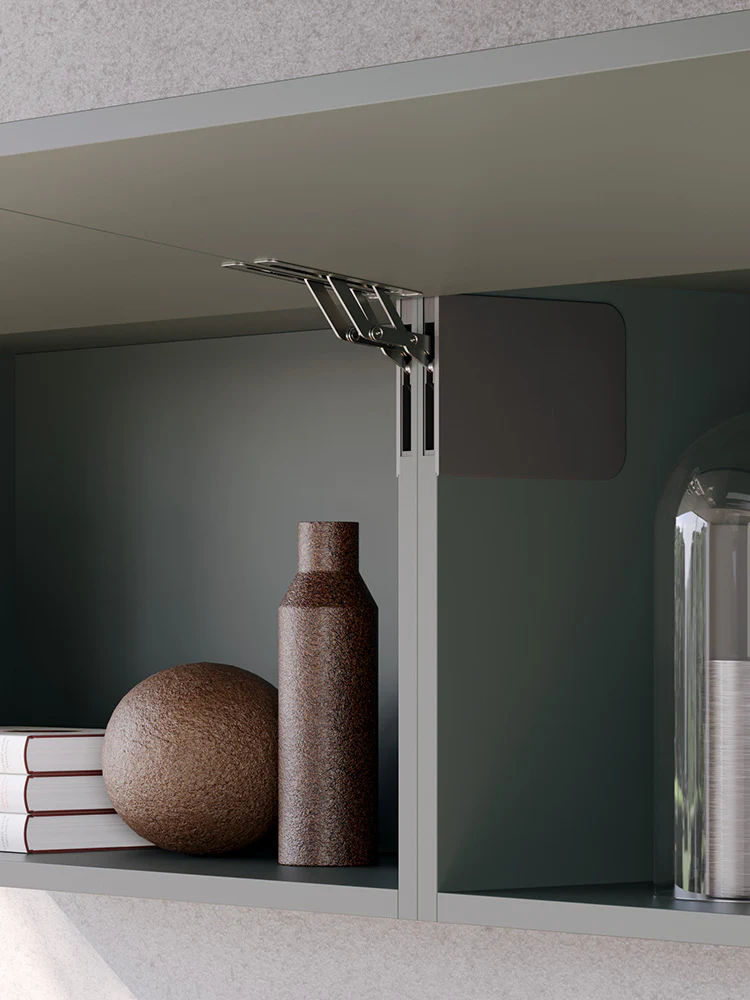

The Salice Tilt Up is a compact and discreet lift system for upward-opening wooden flap doors. This version is designed for flush recessed assembly with cover, allowing the mechanism to be set neatly into the cabinet side and finished with a cover for a clean, integrated appearance.
With a mechanism thickness of only 12mm, or 13.5mm with cover, Tilt Up is ideal for high-end cabinet designs where minimal visible hardware and precise movement are required. The system offers controlled decelerated closing, adjustable spring strength and 3-way door adjustment for accurate alignment and smooth operation.
Key Features
- For upward-opening wooden flap doors
- Flush recessed assembly with cover
- Compact concealed mechanism
- 12mm mechanism thickness
- 13.5mm overall thickness with cover fitted
- Suitable for door thicknesses from 18mm to 30mm
- 15mm machining depth required on the door
- 80° opening with limiter fitted
- 95° opening with limiter disengaged
- Decelerated closing for controlled movement
- Adjustable spring strength
- 3-way door adjustment for precise door alignment
- Suitable for side panel fixing
- Available in Nickel-plated or Titanium system finishes
Cover kits available in a choice of finishes
Cover Finishes
- Signal White – RAL 9003
- Silk Grey – RAL 7044
- Desert Taupe
- Dusty Grey – RAL 7037
- Metal Black
- Traffic Black – RAL 9017
Technical Information
The Salice Tilt Up system is suitable for wooden flap doors with upward opening and side panel fixing. It can be used for external, recessed or flush recessed applications. This listing is for the flush recessed assembly with cover version.
Door thickness must be between 18mm and 30mm, with 15mm machining depth required on the door.
The flush recessed version requires machining into the cabinet side panel and should be checked against the Salice technical drawings before ordering or installation.
Kit Contents
The Tilt Up system pack includes:
- 1 right-hand system
- 1 left-hand system
- Fixing screws

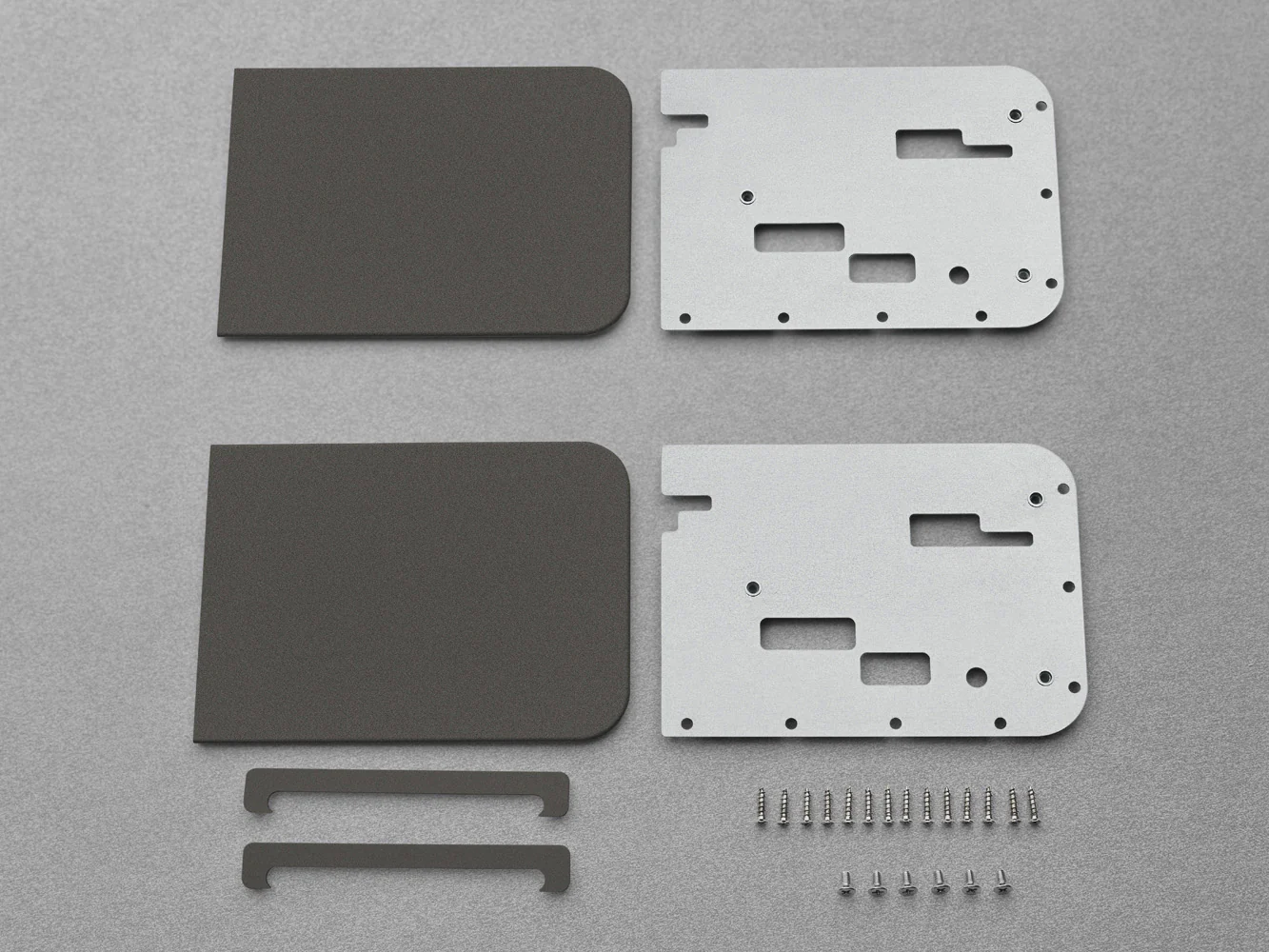

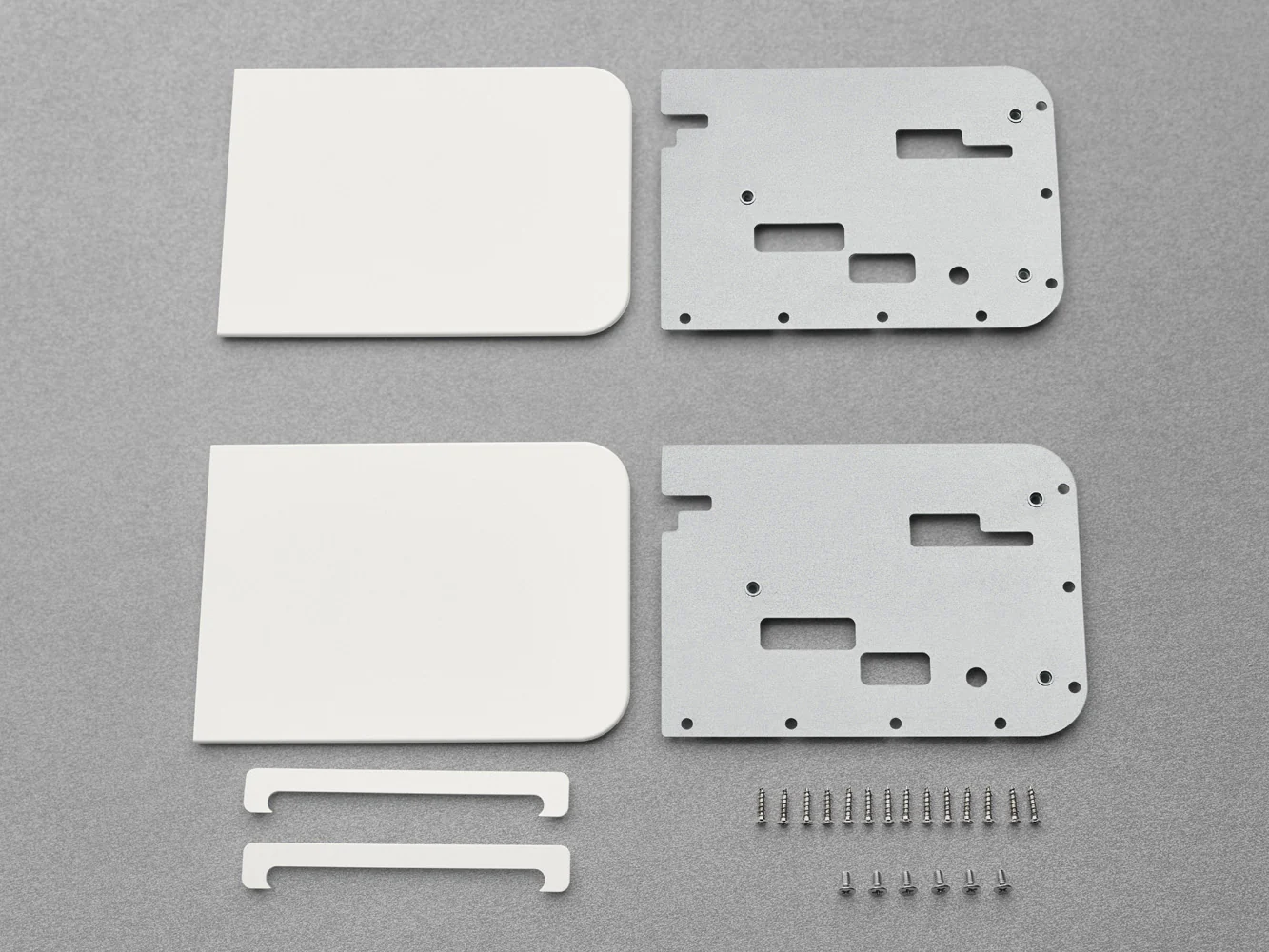

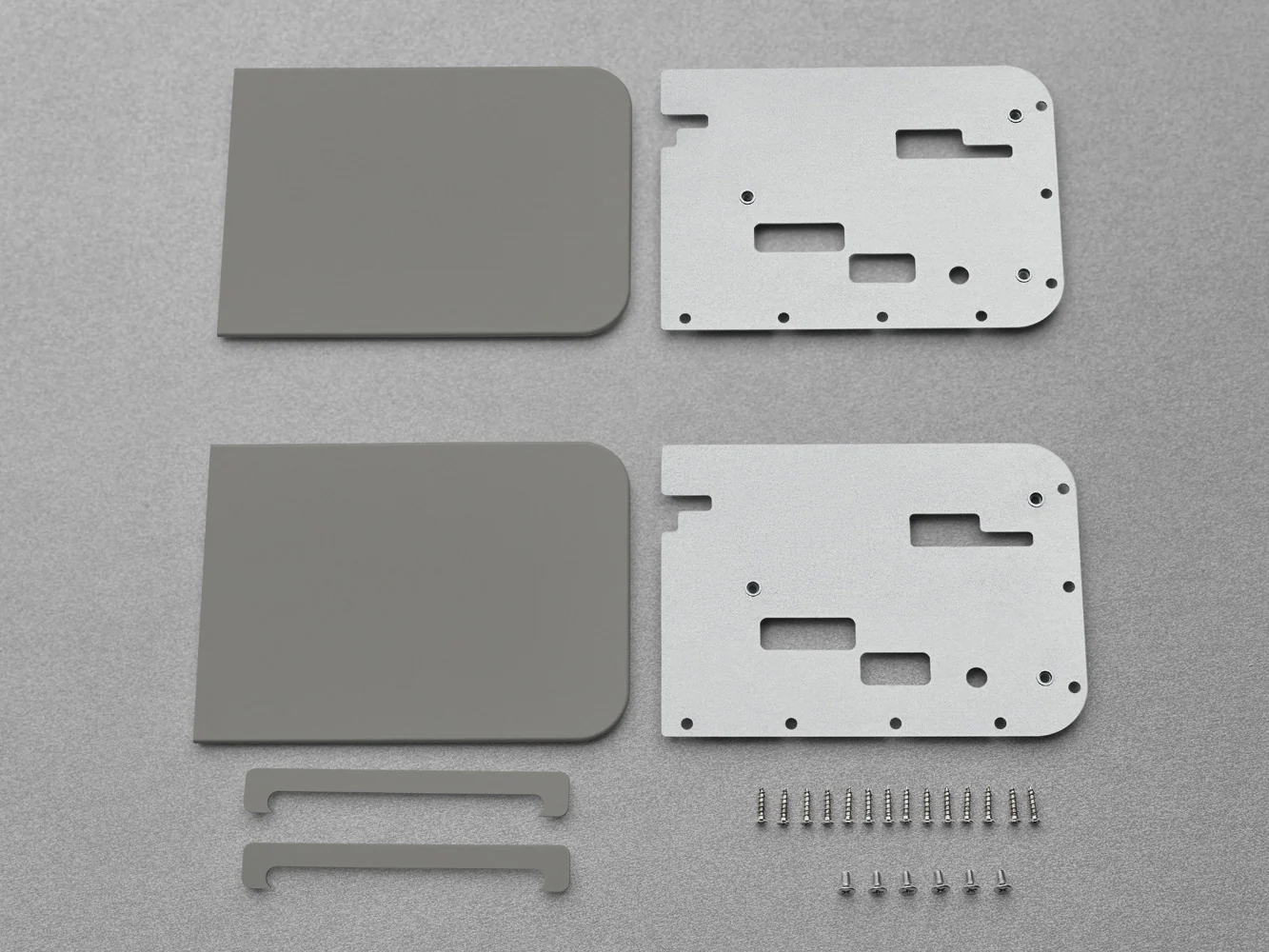

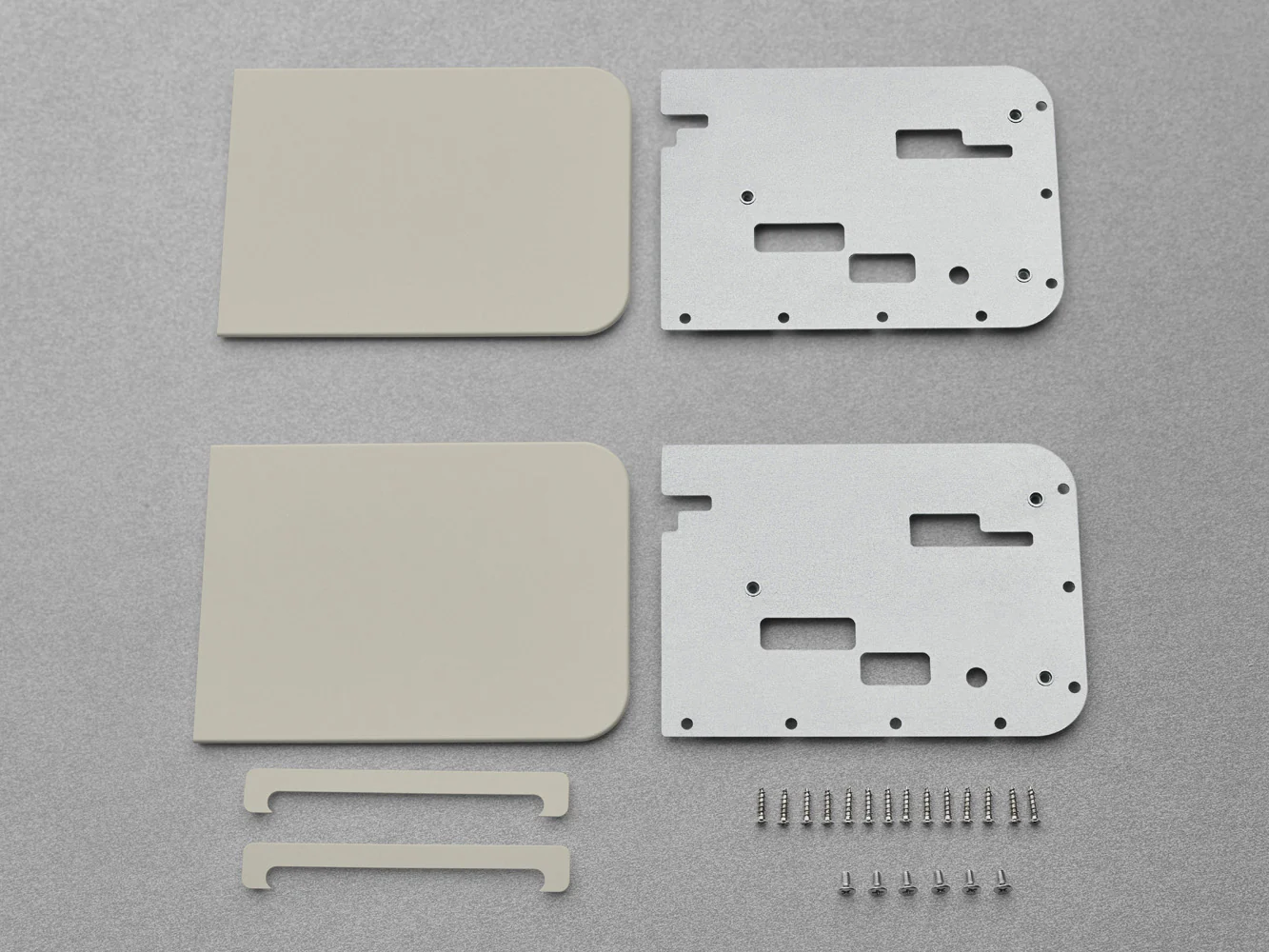

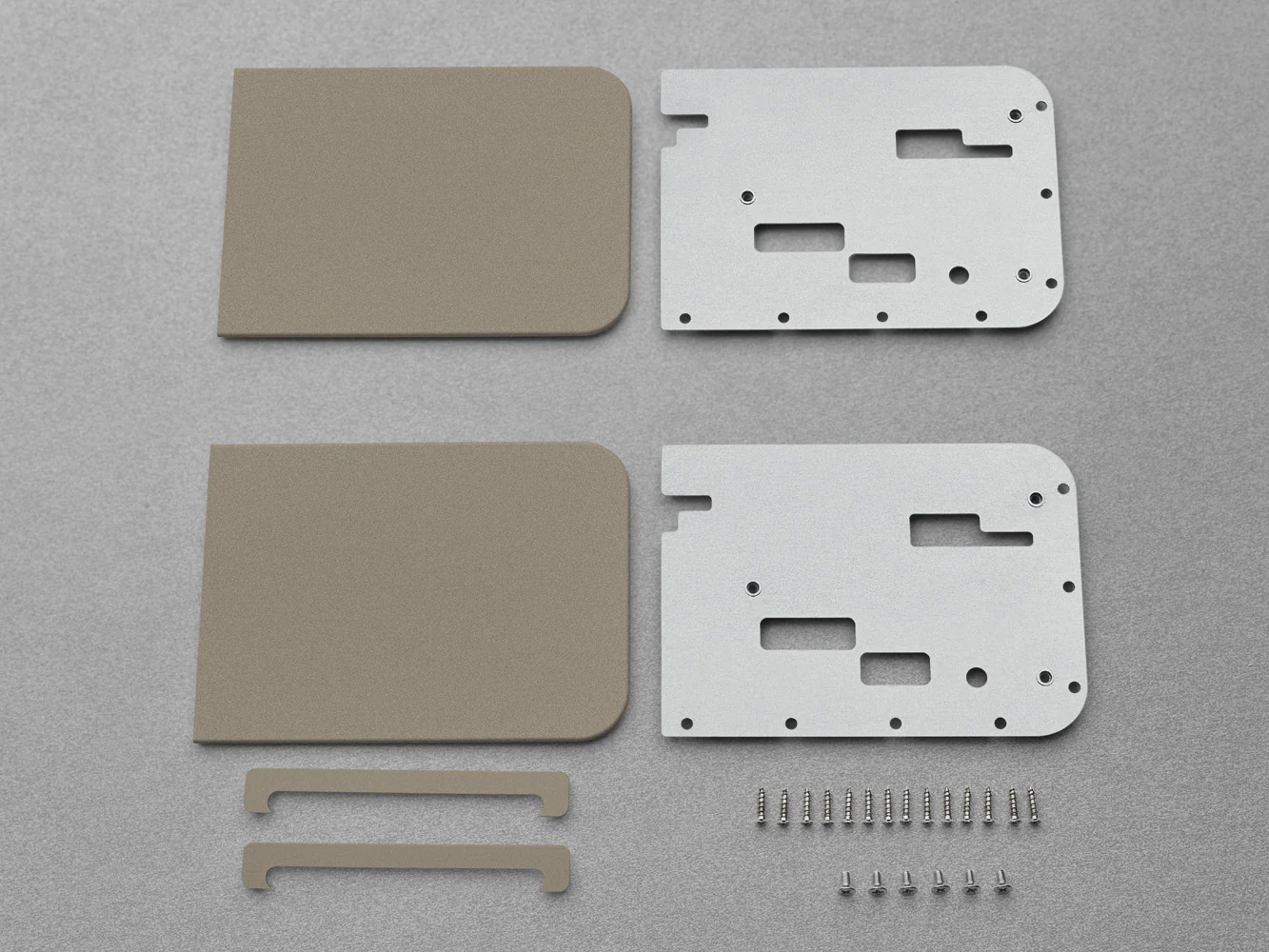

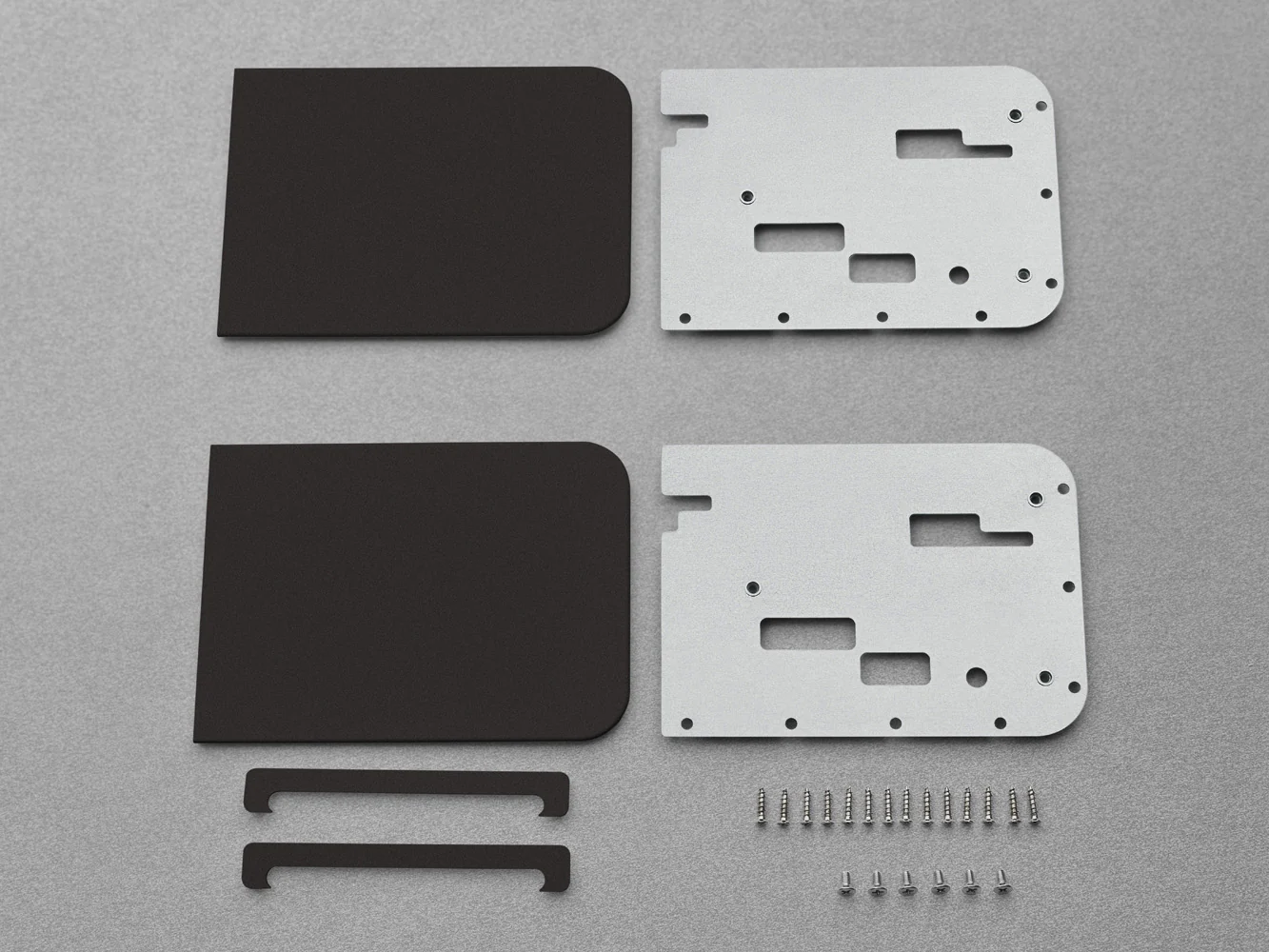

The flush recessed assembly cover kit includes:
- 2 plates
- 2 system covers
- 2 door fixing bracket covers
- Fixing screws
Adjustment
- Spring strength adjustment
- Decelerating force adjustment
- Height adjustment: ±2mm
- Sideways adjustment: ±1.2mm
- Depth adjustment: 0mm to +3mm
Please note: Spring strength should be selected according to the door height and weight using the Salice strength charts. Always check the required machining, cabinet dimensions and cover finish before ordering to ensure the system is suitable for your application.
