Salice Tilt Down for External Assembly with Cover - 18-22mm Thick Doors
The Salice Tilt Down is a compact flap door system for downward-opening wooden doors. This version is designed for external side panel assembly with cover, making it ideal where a simple surface-mounted installation is required while still giving a clean, finished appearance.
This model is suitable for thicker wooden doors from 18mm to 22mm. For this door thickness range, the system requires a 15mm machining depth on the door. Tilt Down provides a controlled 90° opening, with both decelerated opening and decelerated closing for smooth and reliable movement.
With a compact mechanism thickness of only 12mm, or 13.5mm with the cover fitted, Tilt Down is ideal for modern cabinet designs where neat appearance, controlled movement and precise adjustment are required.
Key Features
- For downward-opening wooden flap doors
- External side panel assembly with cover
- For 18mm to 22mm thick doors
- 15mm machining depth required on the door
- Compact 12mm mechanism thickness
- 13.5mm overall thickness with cover fitted
- 90° opening
- Decelerated opening and closing
- Adjustable spring strength
- 3-way door adjustment for precise door alignment
- Suitable for side panel fixing
Available in Nickel-plated or Titanium system finishes
Cover kits available in a choice of finishes
Cover Finishes
- Signal White – RAL 9003
- Silk Grey – RAL 7044
- Desert Taupe
- Dusty Grey – RAL 7037
- Metal Black
- Traffic Black – RAL 9017
Technical Information
The Salice Tilt Down system is suitable for wooden flap doors with downward opening and side panel fixing. It can be used with external, recessed or flush recessed applications. This listing is for the external assembly with cover version, for thicker doors from 18mm to 22mm.
For this door thickness range, the required machining depth on the door is 15mm. The system opens to 90° and features adjustable, decelerated opening and closing movement.
Kit Contents
The Tilt Down system pack includes:
- 1 right-hand system
- 1 left-hand system
- Fixing screws

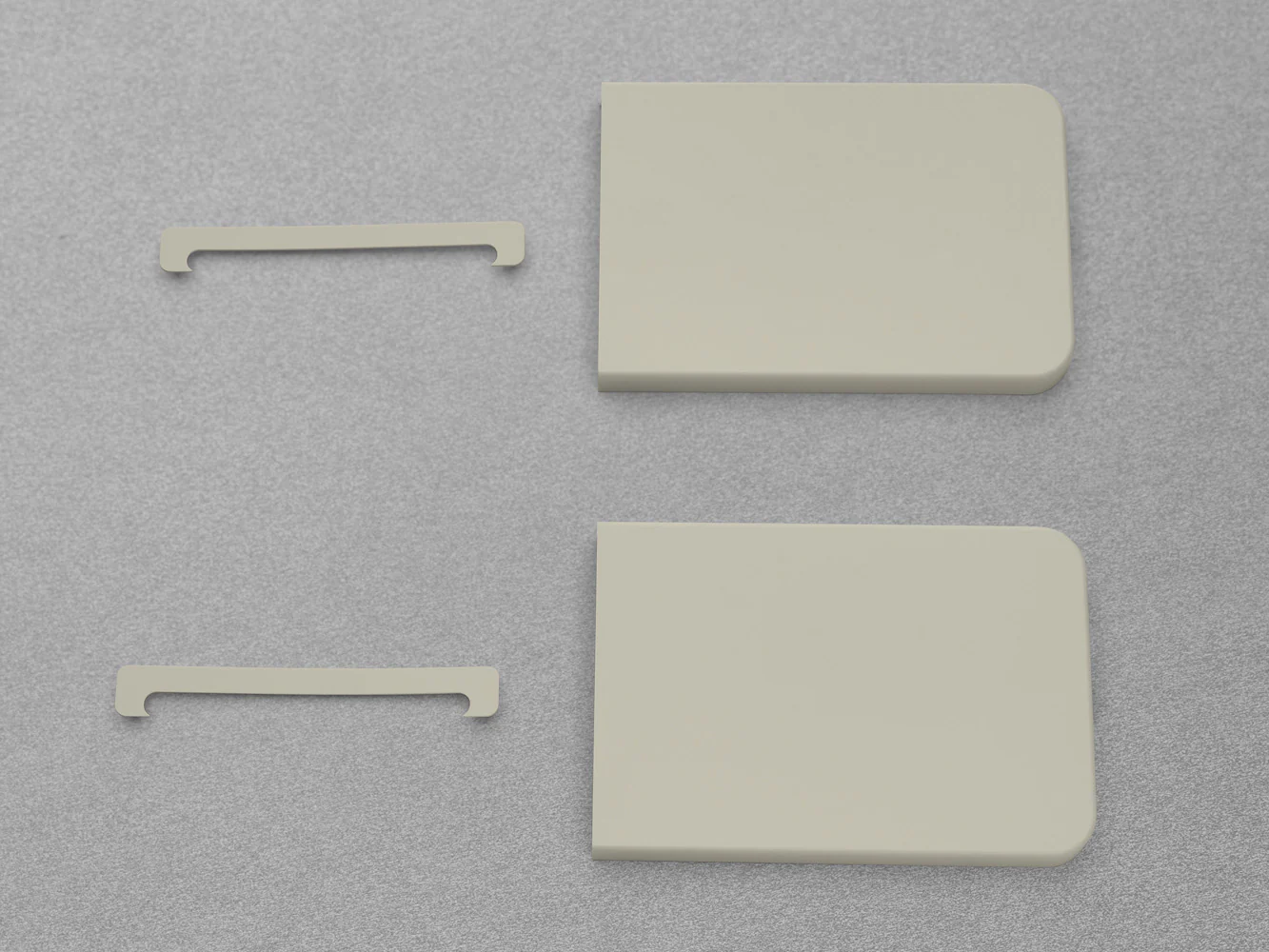

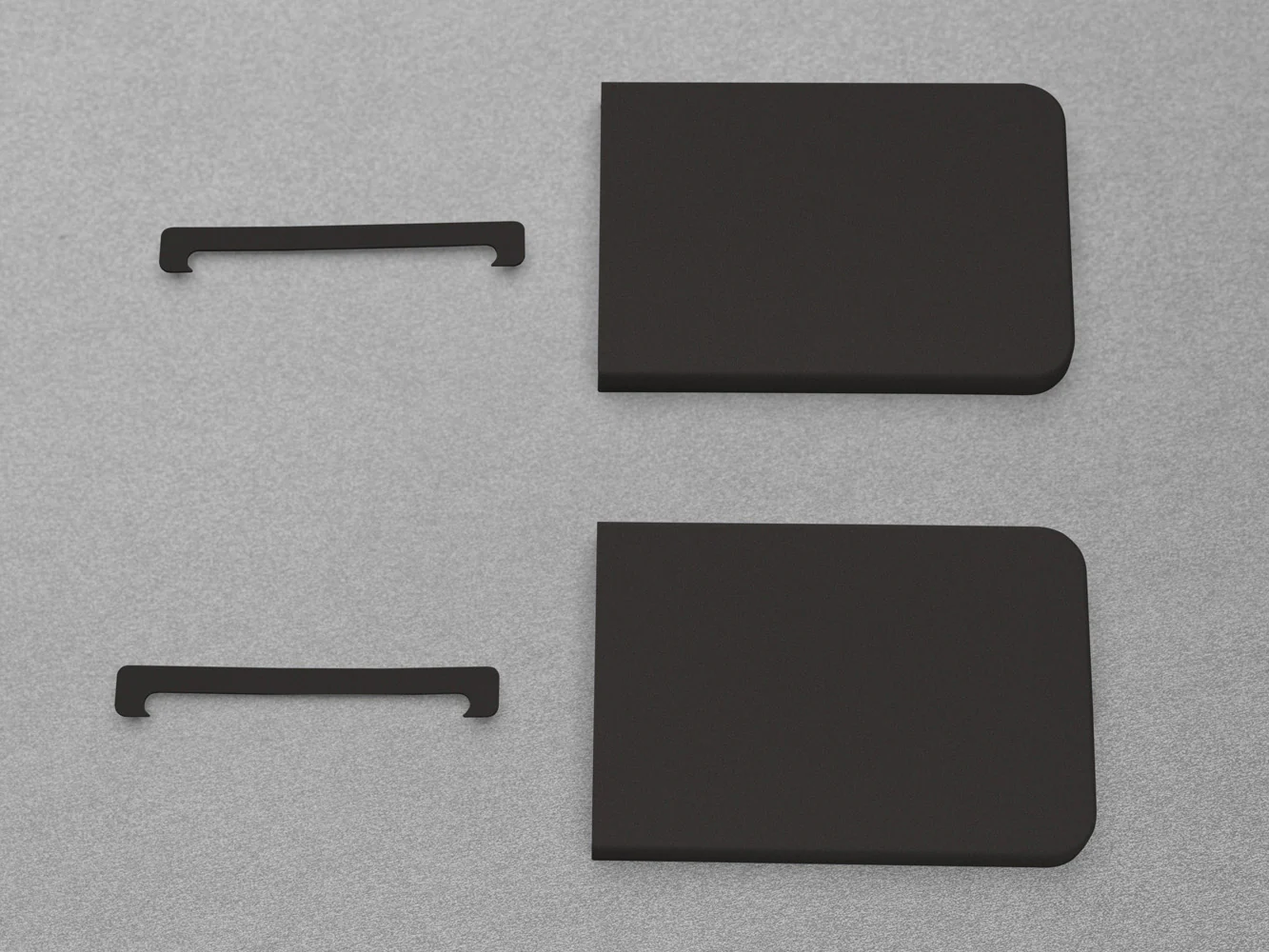

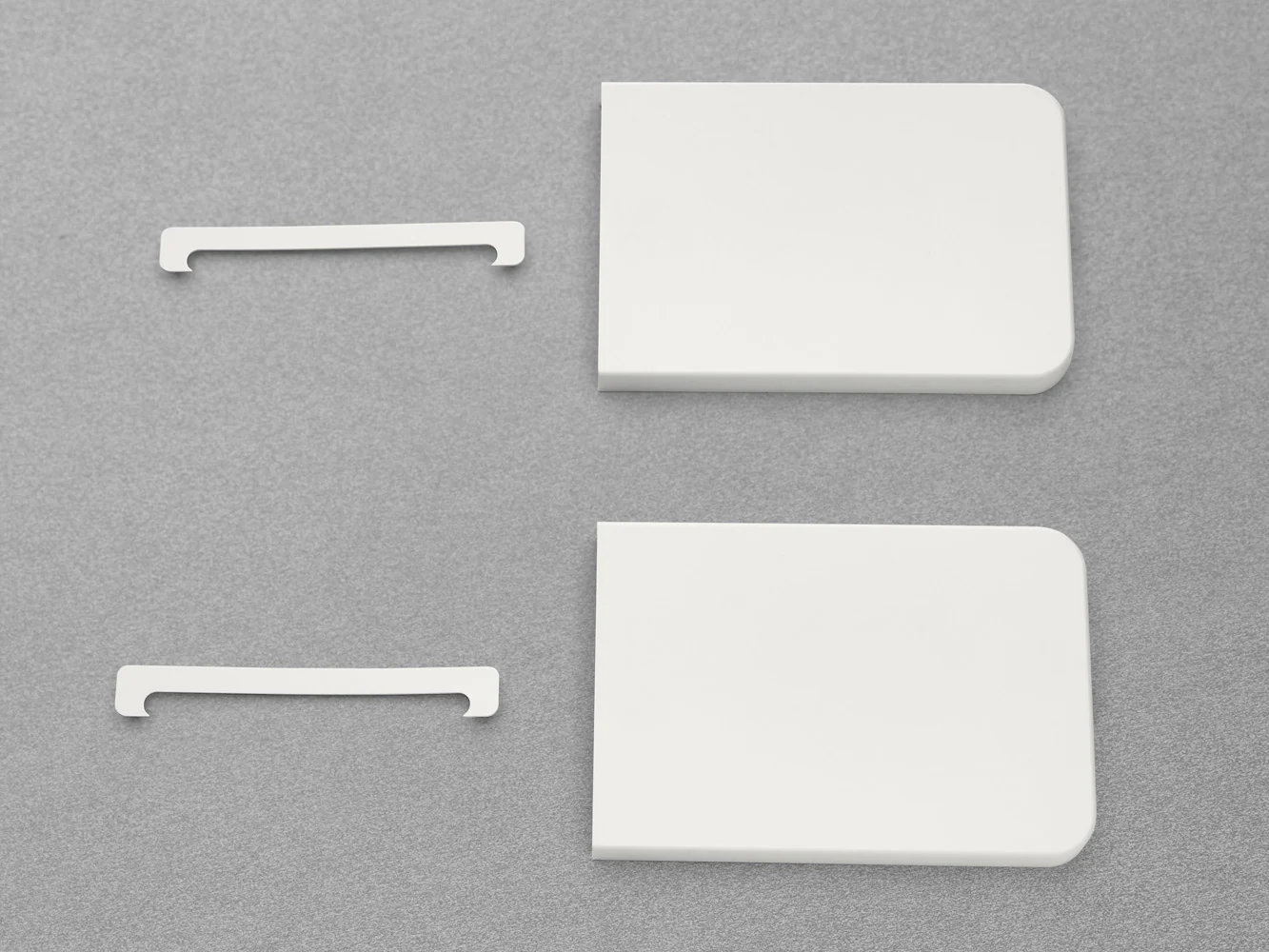

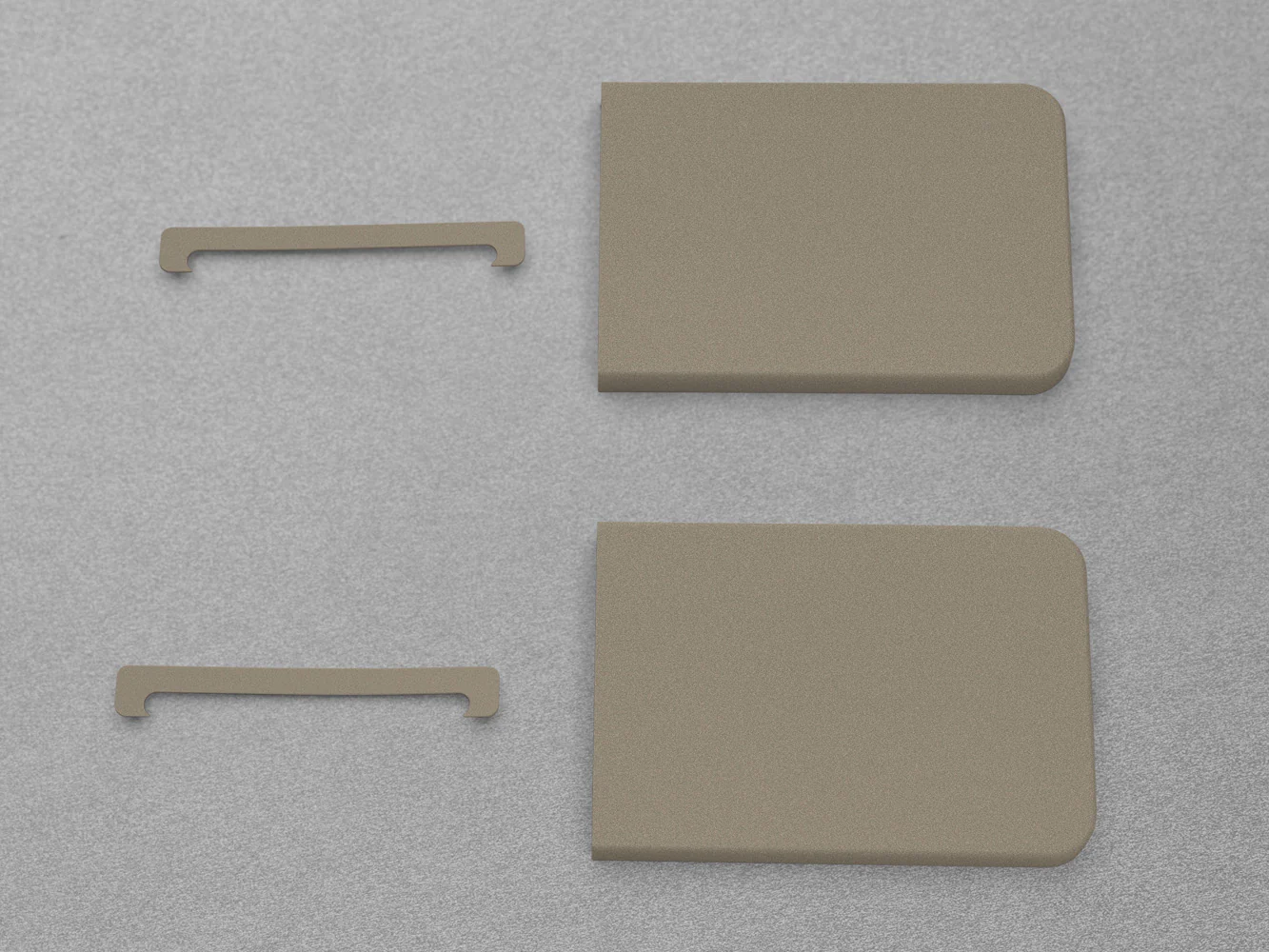

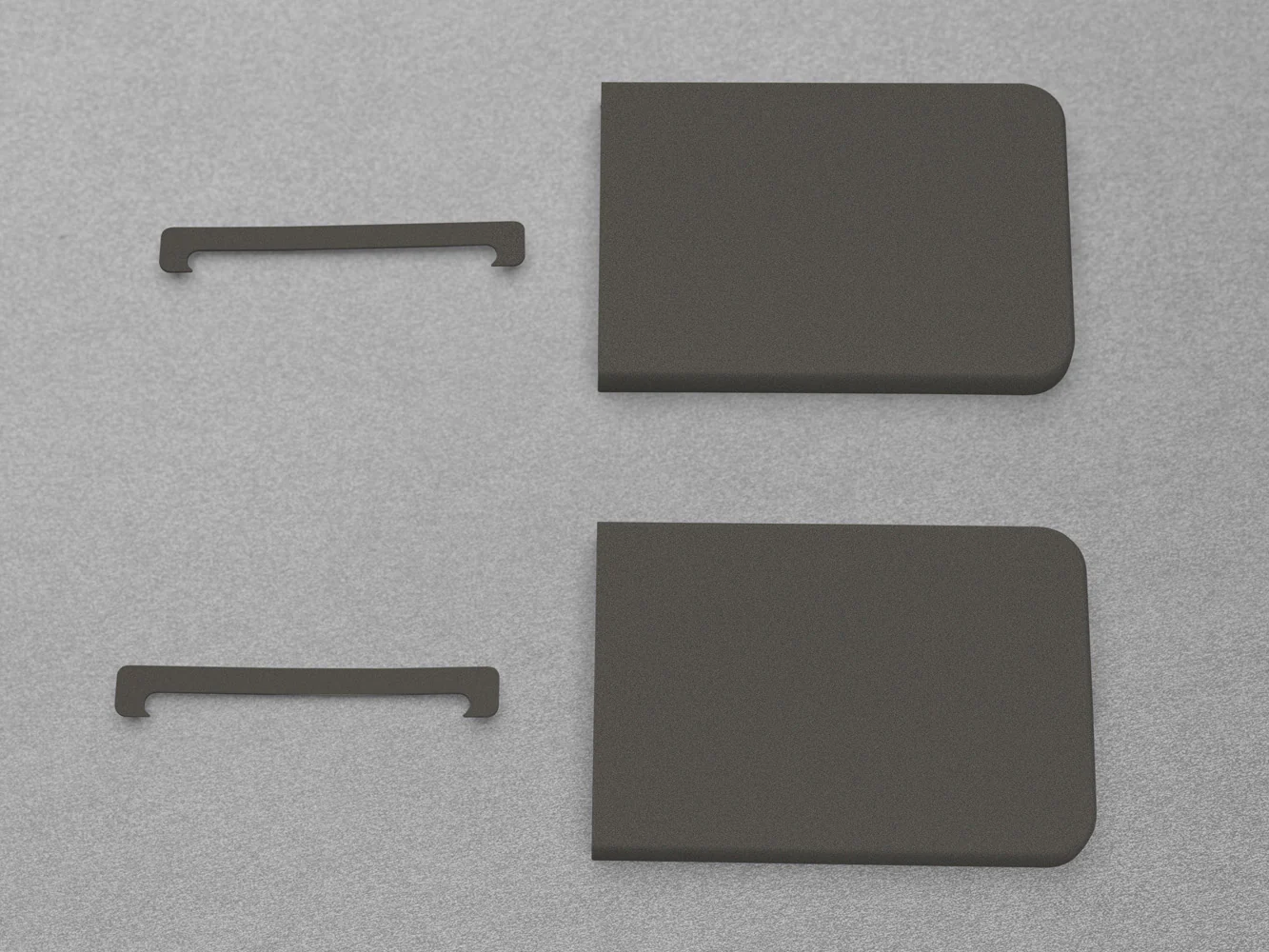

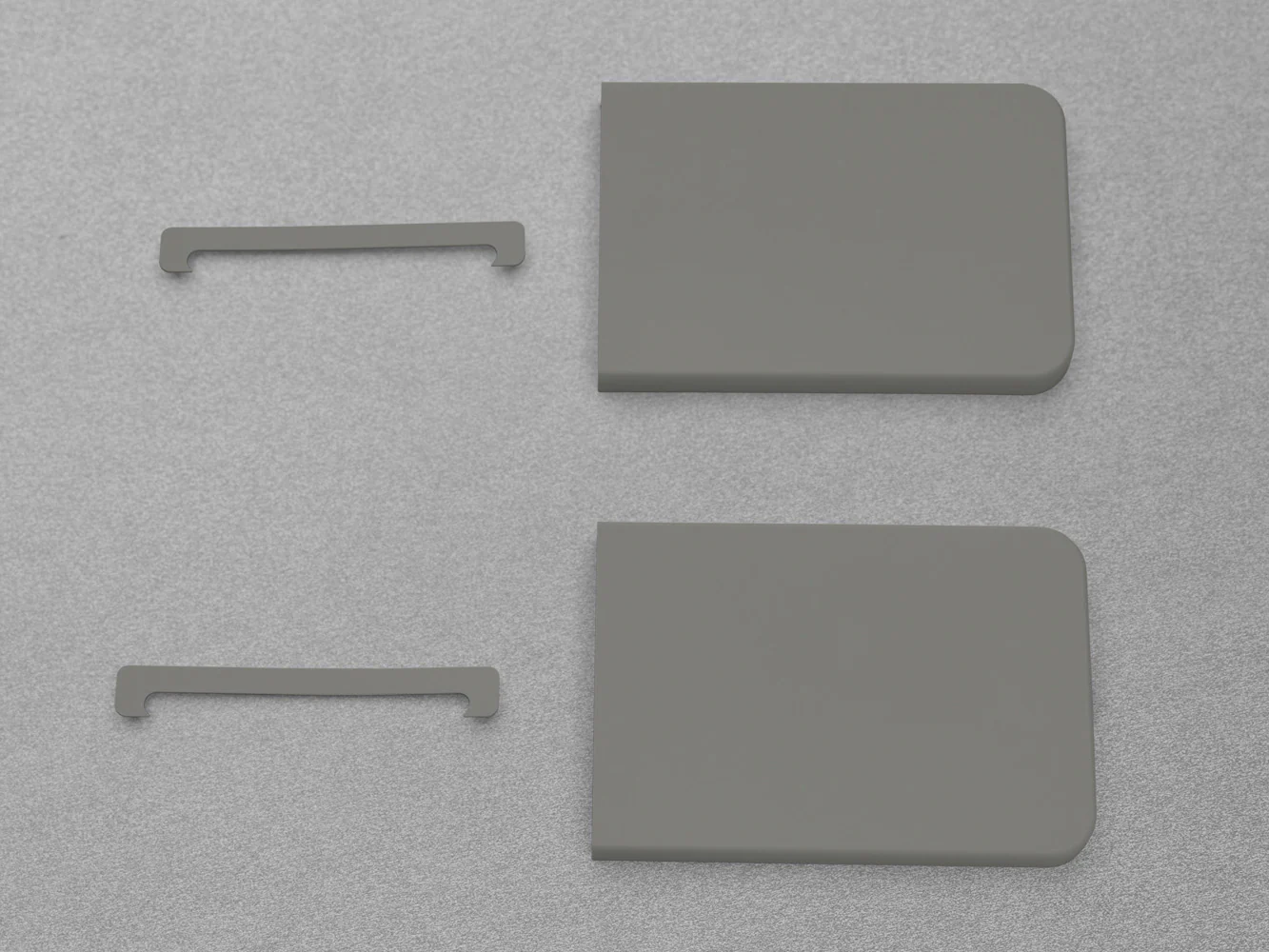

The external assembly cover kit includes:
- 2 system covers
- 2 door fixing bracket covers
Adjustment
- Opening strength adjustment
- Height adjustment: ±2mm
- Sideways adjustment: ±1.2mm
- Depth adjustment: 0mm to +3mm
System Finishes
- Nickel-plated
- Titanium
Please note: Spring strength should be selected according to the door height and weight using the Salice strength charts. Always check the required machining, door thickness and cabinet dimensions before ordering to ensure the system is suitable for your application.
