Salice Tilt Down for Recessed Assembly in Counter Side Panel - 22-30mm Thick Doors

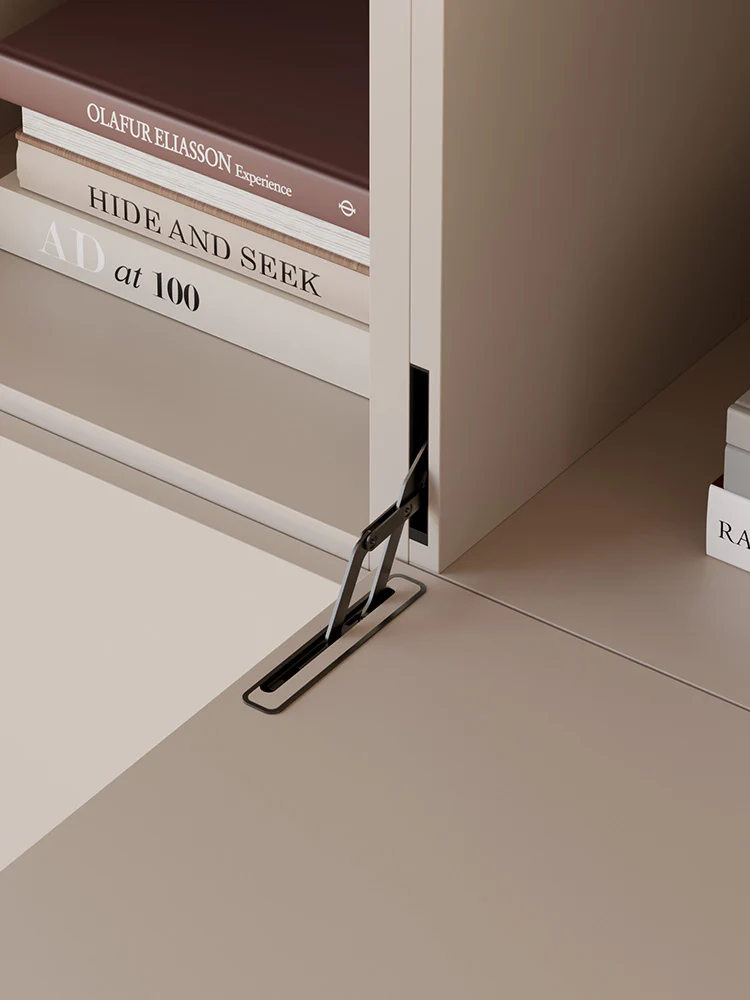

The Salice Tilt Down is a compact flap door system for downward-opening wooden doors. This version is designed for recessed assembly into the counter side panel, allowing the mechanism to sit neatly within the cabinet side for a discreet and integrated finish.
Designed for wooden doors from 22mm to 30mm thick, this version requires a 20mm machining depth on the door. The system provides a controlled 90° opening, with both decelerated opening and decelerated closing for smooth, reliable movement.
With a compact 12mm mechanism thickness, Tilt Down is ideal for modern cabinet designs where minimal visible hardware and controlled movement are required. The system also includes adjustable spring strength and 3-way door adjustment, helping achieve precise alignment and smooth operation.
Key Features
- For downward-opening wooden flap doors
- Recessed assembly into the counter side panel
- For 22mm to 30mm thick doors
- 20mm machining depth required on the door
- Compact 12mm mechanism thickness
- 90° opening
- Decelerated opening and closing
- Adjustable spring strength
- 3-way door adjustment for precise door alignment
- Suitable for side panel fixing
- Available in Nickel-plated or Titanium system finishes
- Designed for wooden doors and side panels from 18mm thickness
Technical Information
The Salice Tilt Down system is suitable for downward-opening wooden flap doors and can be used with external, recessed or flush-mounted applications. This listing is for the recessed assembly in counter side panel version, for doors from 22mm to 30mm thick.
For this door thickness range, the machining depth on the door is 20mm. The system opens to 90° and features both decelerated opening and closing. Salice lists the Tilt Down as having a compact 12mm mechanism, or 13.5mm when used with cover versions.
Kit Contents
The Tilt Down system pack includes:
- 1 right-hand system
- 1 left-hand system
- Fixing screws
Adjustment
- Spring strength adjustment
- Height adjustment: ±2mm
- Sideways adjustment: ±1.2mm
- Depth adjustment: 0mm to +3mm
System Finishes
- Nickel-plated
- Titanium
Please note: This listing is for the recessed assembly in counter side panel version and does not require an external cover kit. Spring strength should be selected according to the door height and weight using the Salice strength charts. Always check the required machining, door thickness and cabinet dimensions before ordering to ensure the system is suitable for your application.
